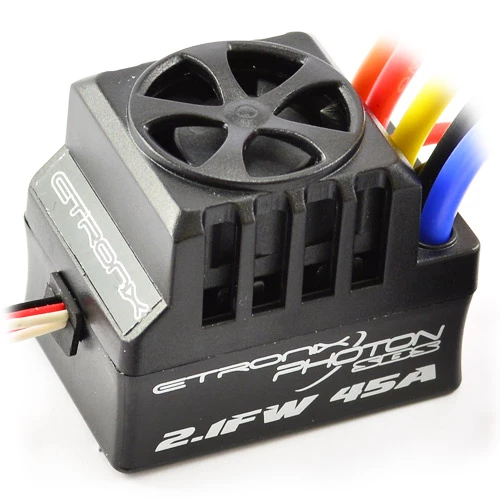

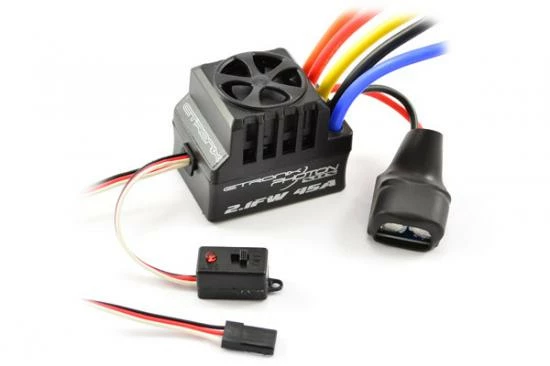

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.

With the additional programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs. (available separately)

45A Specifications :-
2-3S Lipo
5-10S NiMH/NiCd
2A 6V BEC Output
4 Pole sensorless bushless motor
45A Constant current
260A Burst Current

60A Specification :-
2-4S Lipo
5-12S NiMH/NiCd
3A 6V BEC Output
4 Pole sensorless bushless motor
60A Constant current
380A Burst Current

80A Specification :-
2-4S Lipo
5-12S NiMH/NiCd
3A 6V BEC Output
4 Pole sensorless bushless motor
80A Constant current
570A Burst Current

120A Specification :-
2-4S Lipo
5-12S NiMH/NiCd
3A 6V BEC Output
4 Pole sensorless bushless motor
120A Constant current
760A Burst Current

Spec

• Brand: eTronix
• Part No: ET0128
• Barcode: 5055323967665
• Motor Type: Brushless
• LiPo Compatible: Yes
