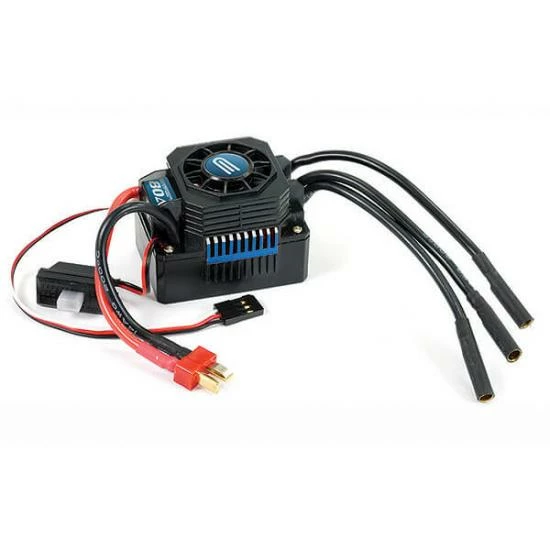

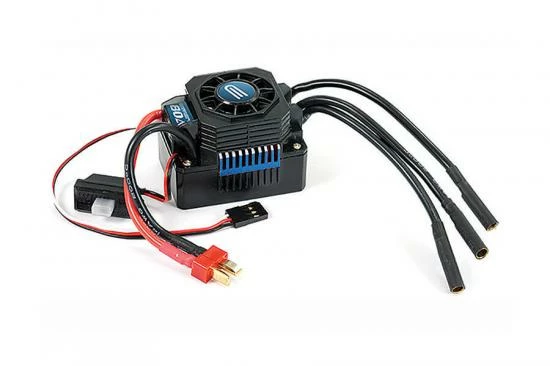

ETronix Photon 80A Brushless Speed Control

ETRONIX PHOTON 80A BRUSHLESS SPEED CONTROL

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.

With the optional programmable set up card (ET0449) the user can finely tune different parameters within the ESC to suit their particular needs.

Features

• Waterproof (without fan installed)
• 2-3S Lipo
• 6-9S NiMH/NiCd
• 3A 6.1V BEC Output
• Sensorless brushless motor
• 2S 3670 size or smaller 3000kV Motor limit
• 3S 3670 size or smaller 2500kV Motor limit
• 80A Constant current
• 480A Burst Current

Specifications

• Dimensions :- 51.5×38.5×38.5mm (without fan)
• Weight :- 84g
