Reedy Blackbox 510R 1S Competition Brushless Esc

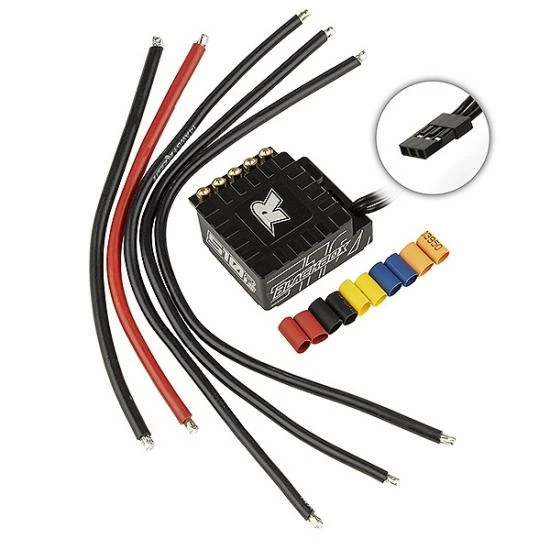

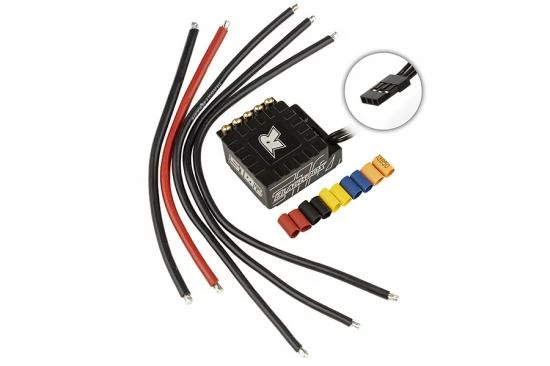

REEDY BLACKBOX 510R 1S COMPETITION BRUSHLESS ESC

For all levels of 1:12 competition

Reedy’s Blackbox 510R 1S Competition ESC is now available! Extensive race testing by Reedy’s engineering and racing team has resulted in a high performance, high quality, and reliable ESC suitable for all levels of 1:12 competition. Thanks to excellent throttle and brake feel, a wide range of precision adjustability, and durable high-quality hardware, the Blackbox 510R 1S ESC suitable for blinky and modified 1:12 racing classes.

Features

• CNC machined black aluminum case with integrated heat sink
• Fully adjustable brake, throttle, power, and safety functions*
• Blinky mode with ROAR approved software
• Precision throttle and brake control
• Ultra-low resistance FET board
• On-board power button
• Solder tabs with 13/14-gauge power wires
• Integrated internal capacitors
• RPM and ESC temp data logging*
• Firmware updateable*
• *Requires AS27027 Blackbox PROgrammer2

Specificationm

Voltage input: 1S LiPo
Continuous current (A): 120
Dimensions (mm): 36.4 x 36.4 x 16.5
Weight w/o wires & fan (g): 40.4
Motor limit: 3.5T
BEC: 6.0-7.4V/5A

Firmware Updates

• Blackbox Firmware Update (195.78 Kb)
• Blackbox Link 2.2 (5.04 Mb)
